MN-BM Battery Monitoring System

MN-BM Battery Monitoring System

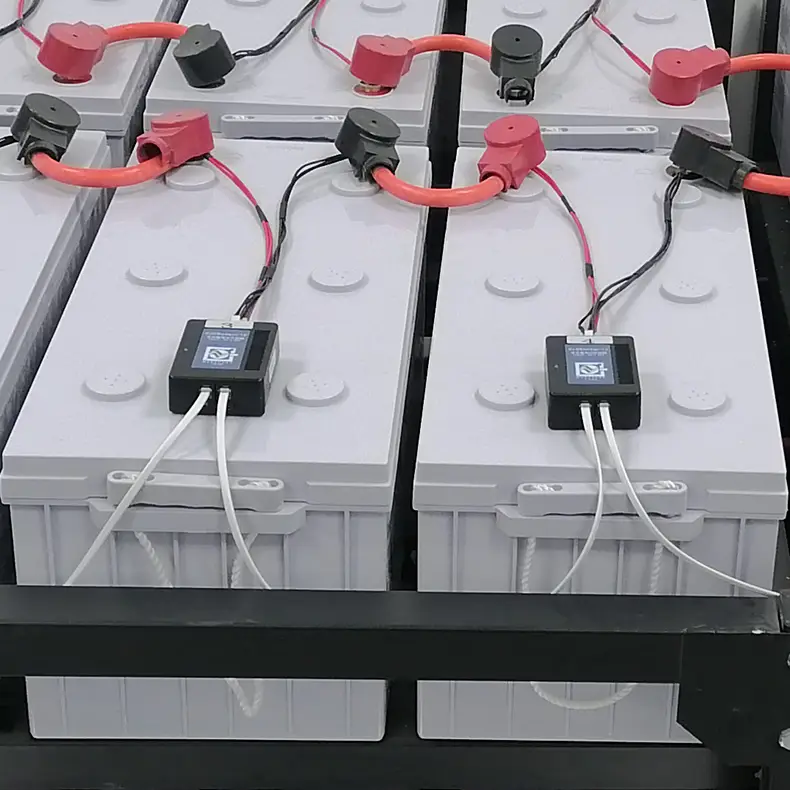

MN-BM Battery Monitor Image 1 MN-BM Battery Monitor Image 2 MN-BM Battery Monitor Image 3 MN-BM Battery Monitor Image 4

Special Product Notice

The MN-BM is a special battery monitoring system. The average cost per battery monitor is approximately $10USD. Since this is a system that requires customization and integration, we don't provide direct online ordering.

If you are interested in this product, please contact our sales team at market@monigear.com. We will provide you with a personalized quote based on your specific requirements and system configuration.

The MONIGEAR MN-BM battery monitoring system can monitor key parameters such as voltage, internal resistance, negative terminal temperature, and group charging and discharging current of each individual battery online in real time. It enables early diagnosis and warning of the deterioration of individual batteries and provides timely alerts in case of abnormalities in the battery system. The installation topology of the individual battery monitoring module significantly reduces construction and maintenance costs. The MN-BM battery monitoring system provides safe, accurate, and convenient online real-time monitoring of batteries, ensuring the stable operation of the power system.

System composition

  • MONIGEAR battery monitoring system consists of MN-BM battery online monitor and MN-BM-CS single battery sensor.
  • MN-BM battery online monitor: Responsible for centralized signal collection and transmission, with a maximum of 128 CS individual battery sensors connected to each bus, and up to 4 battery groups can be monitored through 4 buses. Equipped with an Ethernet port and RS485 communication port. Support multiple communication protocols to access the center management software.

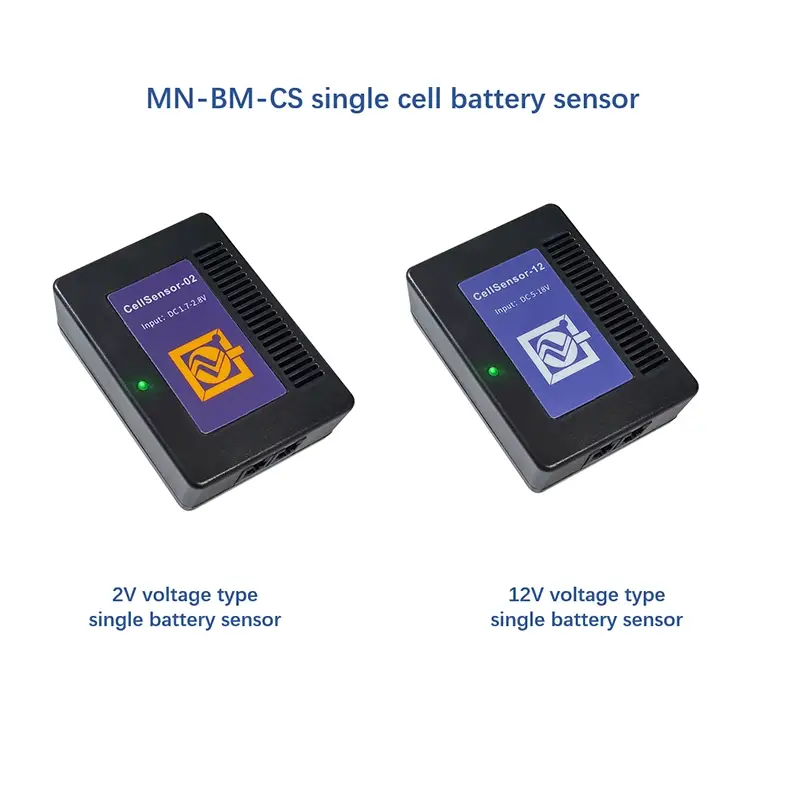

  • MN-BM-CS single cell battery sensor: The key operating parameters of single battery can be monitored online in real time: voltage, internal resistance and negative column temperature. Communication with MONIGEAR battery monitoring system via dedicated bus. Supports 2V and 12V lead-acid batteries.

Key Features

  • Battery Monitoring：Real-time monitoring of key battery parameters including voltage, internal resistance, negative column temperature and group charge-discharge current, as well as accurate analysis and judgment of battery operating status and SOH health status, realizing early diagnosis and warning of battery deterioration.
  • Anti-interference：Adopts advanced anti-interference technology in the monitoring sensor measurement circuit, which can effectively filter out electromagnetic interference from charging equipment and load circuits in complex environments, ensuring stable and accurate measurement values and the normal operation of the monitoring system.
  • IoT Connectivity：Supports MQTT protocol, specially adapts to mainstream IoT cloud services, adopts TLS security encryption for data transmission to ensure data confidentiality and integrity, and supports simultaneous access to two cloud platforms for redundant backup.
  • Low Power & Safety：Features ultra-low static current (less than 5mA for 12V modules, less than 10mA for 2V modules), 3000Vrms isolation voltage between communication bus and battery poles, overcurrent protection circuits, and hardware self-test function for high safety and reliability.
  • Easy Operation：Equipped with a supporting configuration tool for batch installation and quick configuration, supports online remote upgrade for convenient deployment and maintenance, and is equipped with intuitive LED breathing lights for visual status display and module positioning.

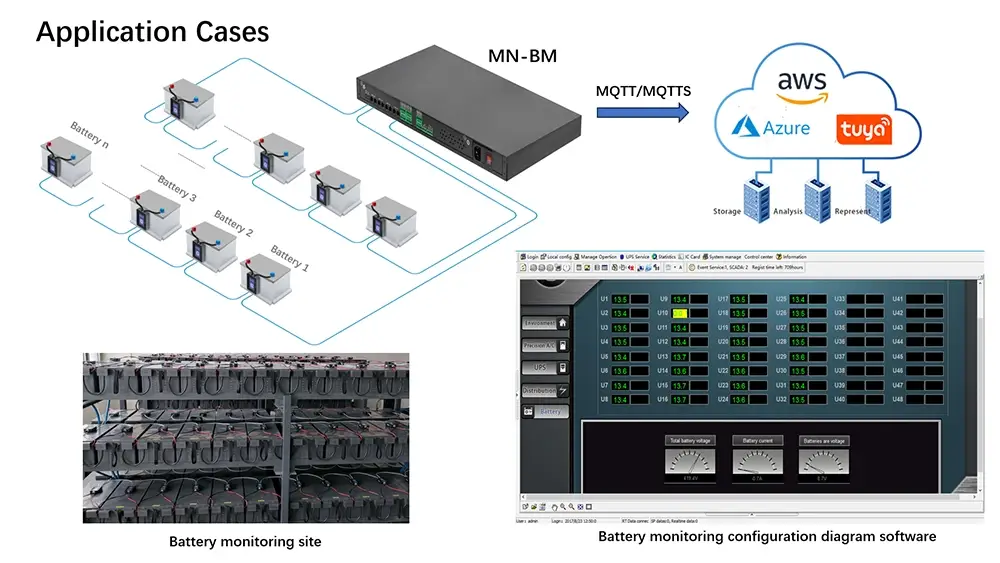

Product Features

Typical Scenarios

Data Centers
Electric power substation
Communication Center
Bank Data Center
Explore Technical Features & Benefits

For detailed information about the capabilities across all our Network Sensors, please visit our common features page.

Technical Specifications

Voltage monitoring of individual battery cells 2V voltage monitoring range: DC 1.7-2.8V. Measurement accuracy +/-0.25%. 12V voltage monitoring range: DC 5-18V. Measurement accuracy +/-0.25%
Internal resistance monitoring of single battery 2V internal resistance monitoring range: 0-2.5mΩ; measurement accuracy: +/-3%. 12V internal resistance monitoring range: 0-20mΩ; measurement accuracy: +/-3%
Temperature monitoring of the negative pole column of a single battery Range: -15℃ to 65℃; Measurement accuracy: +/-1.5℃.
CS_BUS bus interface Up to four sets of battery packs can be monitored through four CS_BUS buses. Each CS_BUS can connect up to 128 CellSensor single battery monitoring modules.
AI sensor interface There are a total of 8 AI analog input interfaces, with the default input signal type being voltage ranging from 0 to 5V. Among them, AI1, AI3, AI5, and AI7 are designated as the current sensor signal interfaces for battery packs 1-4, respectively.
Communication Protocol 10/100M Base-Tx Ethernet port. Supports multiple communication protocols for integration with the central management software of the host computer: GNC protocol, MQTT/MQTTS, ModbusTCP, etc.
Console interface One RS232 configuration port, baud rate 38400bps, 8N1, no flow control.
RS485 interface One RS485 communication port, supporting ModbusRTU interface functions.
DI interface 4-channel DI digital input interface.
DO interface 1-channel DO mechanical relay output interface. Switch capacity: 0.5 A at 125 VAC; 2 A at 30 VDC.
Power supply AC 220V, 50Hz (DC 48V optional)
Appearance size Length*widget*hight(mm) = 166*88*61
Weight About 600g
